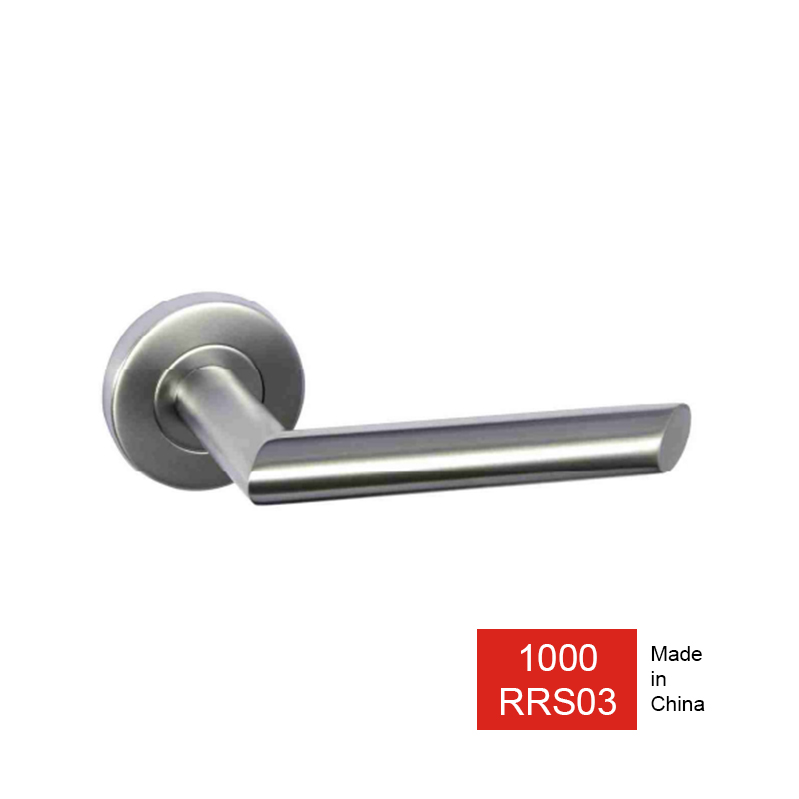

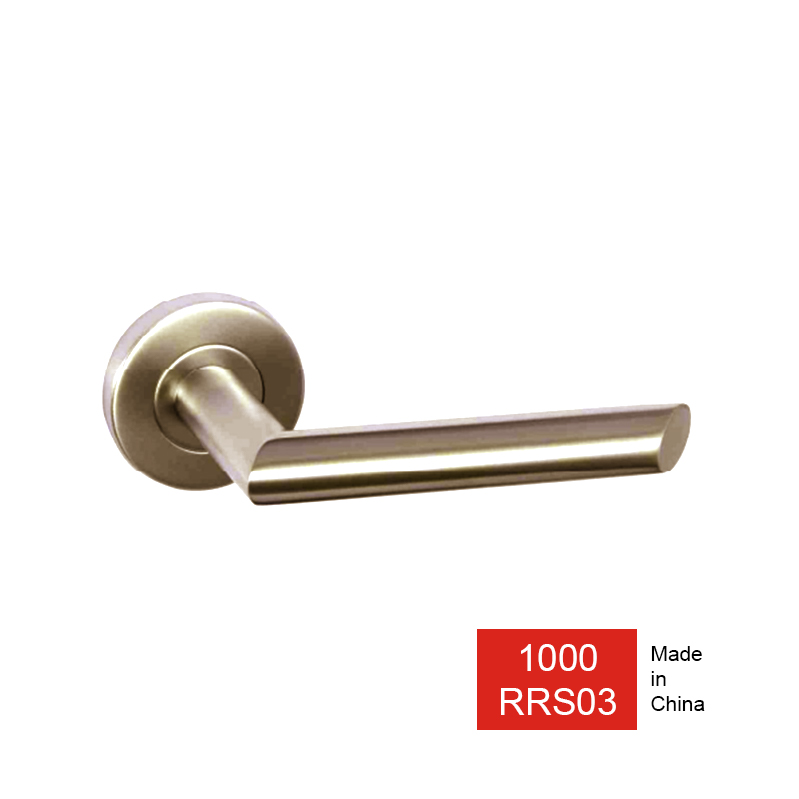

Tubular Stainless Steel Door Furniture – 1000RRS03 (1000 Series Furniture)

Brands : Union
Model No: 1000RRS03
Material : Stainless Steel
Finishes: Black
Warranty: 1 Year
Made in China

Description

Application:

For wooden doors between 32-50mm thick
19mm diameter handle
Sprung
Supplied with bolt-through fixings
Concealed fixings
Non-handed

Specification:

Available in SS316 and SS304 stainless steel
Handle length: 130mm
Handle projection: 60mm
Rose diameter: 54mm
Rose projection: 8mm
Please refer to separate page for
accessories
Available with push-on rose as standard
Also available with screw-on rose upon
request

Finish:

SS – Satin Stainless Steel
PB – PVD
PS – Polished Stainless Steel

Standards:

Tested to BS EN 1906 : 2012
4 7 – B 0 5 0 B
BS EN 1634 Part 1 : 2000 assessed for use
on 60 minute timber fire doors, and 240
minute steel doors
Corrosion testing – 480 hours – EN 1670
Grade 4

Additional information

Dimensions 1.3 × 0.6 cm
